S202031MS02QE
Manufacturer:
C&K Components
Mfr.Part #:
S202031MS02QE
Datasheet:
Description:

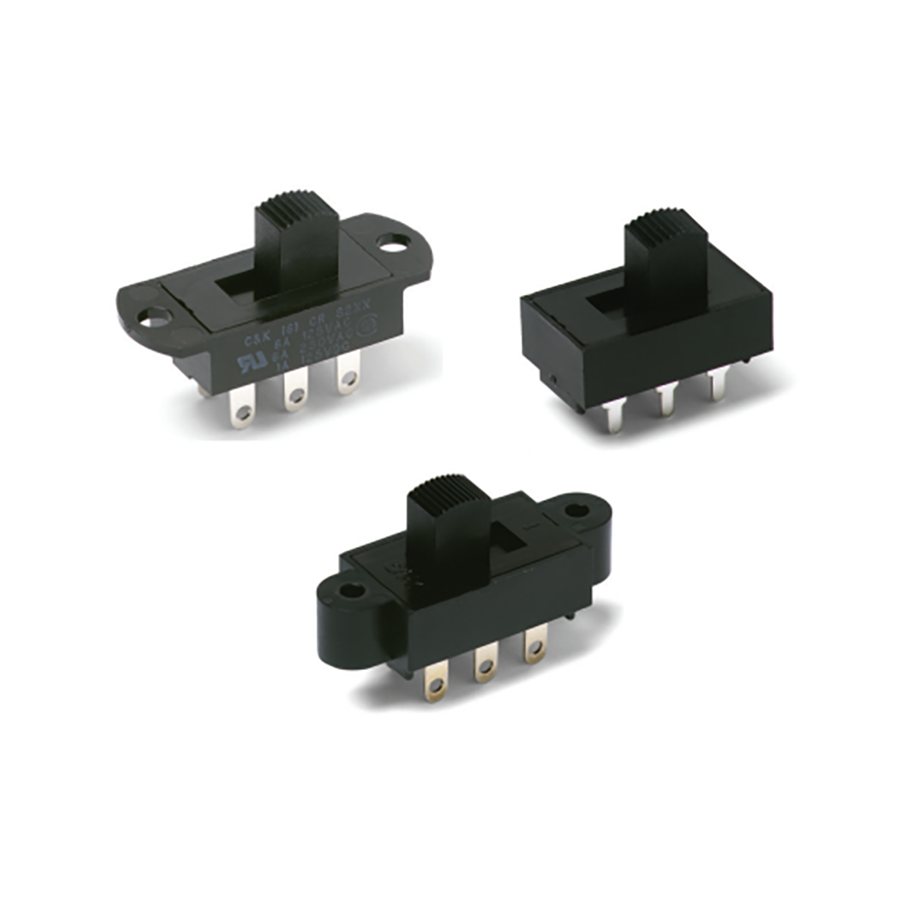

Slide Switches Through Hole ON - ON DPDT Current Rating:1 A Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 22.99 mm |
| Termination | PC Pin |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Depth | 13.46 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 1 A |
| Max Current Rating | 6 A |
| Max Voltage Rating (DC) | 125 V |
| Orientation | Straight |
| Actuator Length | 8.51 mm |
| Throw Configuration | DPDT |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 250 V |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 4.57 mm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 6 A |
| Actuator Type | Slide |
| Termination Style | Through Hole |
| Schedule B | 8536509050 |
Stock: 266
Distributors
pcbx
pcbxUnit Price$4.57473
Ext.Price$4.57473
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.57473 | $4.57473 |
| 10 | $3.80529 | $38.05290 |
| 25 | $3.52915 | $88.22875 |
| 50 | $3.33307 | $166.65350 |
| 100 | $3.14785 | $314.78500 |
| 300 | $2.96059 | $888.17700 |
| 500 | $2.78450 | $1392.25000 |
| 1000 | $2.65370 | $2653.70000 |
